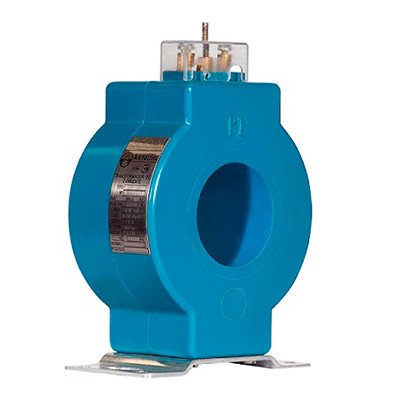

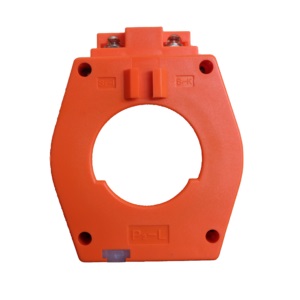

Transformadores de Corriente MFO
En temas de medición de potencia, los Transformadores de Corriente, nos permite medir y monitorear sistemas de alta tensión, cuyos valores de corriente son tales que no pueden ser medidos directamente por un sistema o dispositivo digital.
| Amp. | Max. V.A | Max. Cable | Max. Barra Cu |
| 30/5A | 2.5VA | 25mm | 10x30mm |
| 40/5A | 2.5VA | 25mm | 10x30mm |
| 60/5A | 2.5VA | 25mm | 30x10mm |
| 100/5A | 2.5VA | 25mm | 30x10mm |
| 150/5a | 2.5VA | 25mm | 30x10mm |
| 200/5A | 2.5VA | 25mm | 30x10mm |
| 250/5A | 5VA | 30mm | 40x10mm |
| 300/5A | 5VA | 30mm | 40x10mm |
| 400/5A | 5VA | 30mm | 40x10mm |
| 600/5A | 10VA | 30mm | 40x10mm |
| 800/5A | 10VA | 46mm | 60x20mm |
| 1000/5A | 15VA | 62mm | 100x10mm |
| 1500/5A | 15VA | 62mm | 100x10mm |
| 2000/5A | 15VA | 62mm | 100x10mm |
| 2500/5A | 15VA | 62mm | 100x10mm |
| 3000/5A | 15VA | 62mm | 100x10mm |
