Contactores LC1D
Contactor control de motor carga resistiva
Especificaciones:
- Tipo de componente, conector.
- Tensión de funcionamiento nominal (Ue), Circuito de alimentación <= 690 V AC 25...400 Hz, Circuito de alimentación <= 300 V CC.
- Composición de los contactos auxiliares, 1 NA + 1 NC.
- Resistencia a picos de tensión, 6 kV conforme a IEC 60947.
- Tensión nominal de aislamiento, 690 V conforme a IEC 60947-4-1.
- IP20 frontal acorde a IEC 60529.
| Ref. | Polos | Circuito Control | Tensión Circuito |
| LC1D09 | 3 P | CA en 50/60 Hz | 24 V AC 50/60 Hz |
| LC1D09 | 3 P | DC Estándar | 24 V corriente continua |
| LC1D09 | 3 P | AC a 50/60 Hz | 48 V AC 50/60 Hz |
| LC1D09 | 3 P | AC a 50/60 Hz | 110 V AC 50/60 Hz |
| LC1D09 | 3 P | AC a 50/60 Hz | 220 V AC 50/60 Hz |

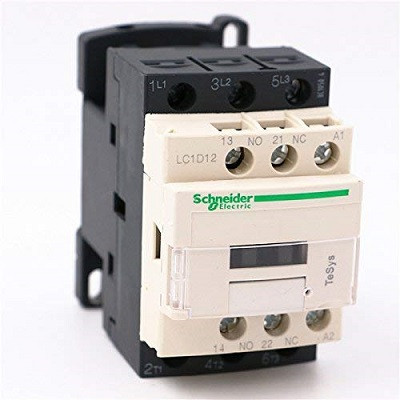

| LC1D12 | 3 P | CA a 50/60 Hz | 24 V CA 50/60 Hz |
| LC1D12 | 3 P | CC Estándar | 24 V corriente continua |
| LC1D12 | 3 P | AC a 50/60 Hz | 48 V AC 50/60 Hz |
| LC1D12 | 3 P | AC a 50/60 Hz | 110 V AC 50/60 Hz |
| LC1D12 | 3 P | AC a 50/60 Hz | 220 V AC 50/60 Hz |
| LC1D18 | 3 P | CC Estándar | 24 V corriente continua |
| LC1D18 | 3 P | CA a 50/60 Hz | 24 V CA 50/60 Hz |
| LC1D18 | 3 P | AC a 50/60 Hz | 48 V AC 50/60 Hz |
| LC1D18 | 3 P | AC a 50/60 Hz | 110 V AC 50/60 Hz |
| LC1D18 | 3 P | AC a 50/60 Hz | 220 V AC 50/60 Hz |

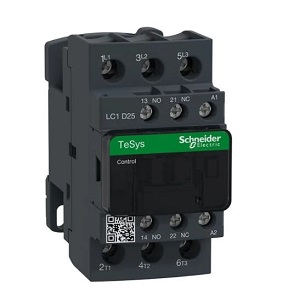

| LC1D25 | 3 P | AC a 50/60 Hz | 24 V AC 50/60 Hz |
| LC1D25 | 3 P | AC a 50/60 Hz | 48 V AC 50/60 Hz |
| LC1D25 | 3 P | AC a 50/60 Hz | 110 V AC 50/60 Hz |
| LC1D25 | 3 P | CA a 50/60 Hz | 220 V CA 50/60 Hz |

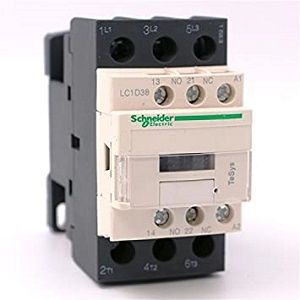

| LC1D38 | 3 P | AC a 50/60 Hz | 24 V AC 50/60 Hz |
| LC1D38 | 3 P | CA a 50/60 Hz | 220 V CA 50/60 Hz |
| LC1D40 | 3 P | CA a 50/60 Hz | 220 V CA 50/60 Hz |
| LC1D50 | 3 P | CA a 50/60 Hz | 220 V CA 50/60 Hz |
| LC1D65 | 3 P | AC a 50/60 Hz | 220 V AC 50/60 Hz |
